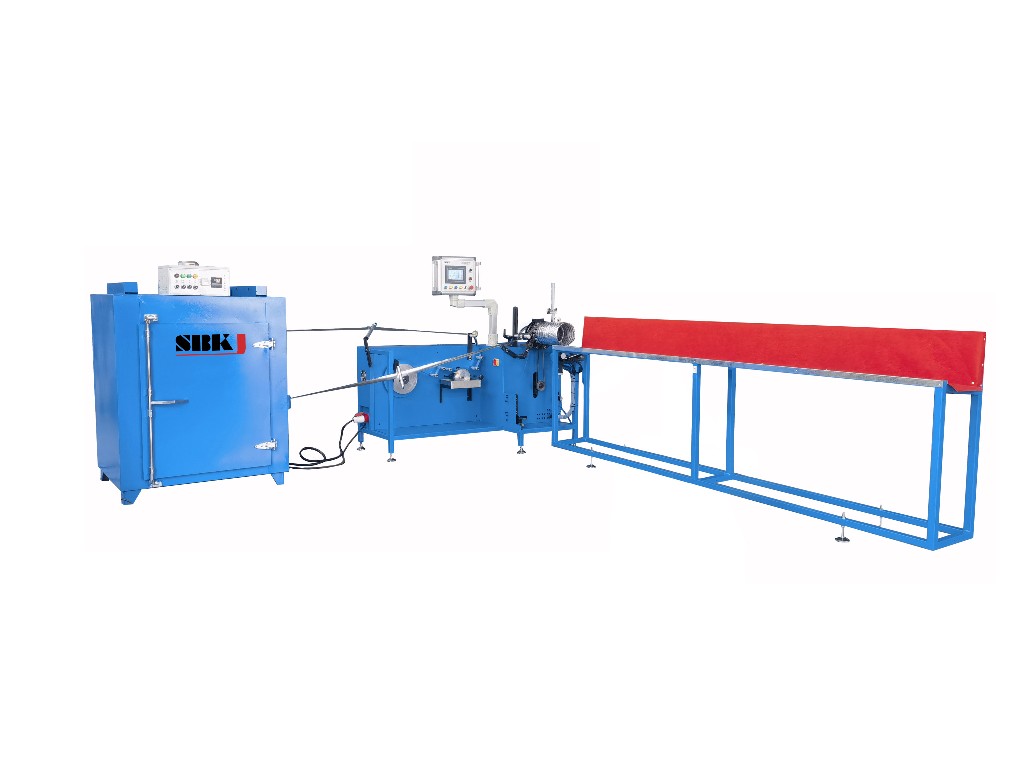

Stainless Duct Forming Machine

Specifications, applications and operation

Specification breakdown. The Stainless Duct Forming Machine covering diameters from Φ100–Φ500 mm, handles material thicknesses of 0.05–0.1 mm (stainless steel), requires Main 2.2 kW / Decoiler 1.5 kW, main dimension 2200×1500×1600 mm, decoiler dimension 2000×700×980 mm, and weighs approximately 750 kg.

Typical applications. Sheet metal forming and bending machines complete the cross-section of duct walls and fittings. Folding and bending equipment is needed for short-run rectangular duct, custom transitions, saddles and offsets that don't justify a full automatic line. Plate rolling is essential for round duct fittings and for any cylindrical industrial duct work. Every duct shop, regardless of size, needs at least one folding or rolling machine to handle the work that an auto duct line cannot.

How it works. Forming and bending machines work the sheet metal into its final cross-section. Folding machines use a clamping beam and a swinging blade to bend the sheet to the programmed angle; rolling machines pass the sheet between three or four rolls to produce a continuous curve. Both operations can be programmed and repeated for batch production.

Quality, certification and after-sales. Like every machine in the SBKJ catalogue, this unit is built to ISO 9001:2015 quality management standards and CE marked for European conformity. The factory in Jiangyin, Jiangsu has been operating since 1995 and SBKJ holds 60+ invention and utility patents in HVAC ductwork machinery design. Each machine ships with a 12-month warranty on mechanical and electrical components, lifetime spare-parts availability, and 3–7 days of on-site installation supervision and operator training by an SBKJ engineer. Remote support is available via WhatsApp and email, with engineer response within 12 hours and technical troubleshooting within 72 hours.

Where this fits in your workshop

Flexible duct machines run as a small dedicated cell, usually separate from the rigid-duct workshop because the products and the materials are fundamentally different. A typical flex cell has an aluminium-foil decoiler, the helical winder or sleeve forming station, an insulation wrapping station for insulated flex, an end-shrinking machine to prepare connection ends, and a packaging table. SBKJ can supply the cell as a turnkey package or as individual modules to drop into an existing flex line.

Pre-purchase checklist

Use this list when you write the enquiry or when you compare two suppliers. Each line is something an SBKJ engineer will want clarified before quoting.

• Diameter range matched to your distribution channel (residential vs commercial)
• Insulation type compatibility (glasswool, polyester, none)
• Maximum continuous run length per cycle
• Operator skill level — flex machines are typically run by 1–2 people
• Power demand at the heater elements, not just the main drive
• Compressed air spec if the machine uses pneumatic clamping

Operator and maintenance notes. The Stainless Duct Forming Machine is designed to be run by a single trained operator under normal conditions. Daily checks include lubrication of the forming rolls, inspection of the drive belts and chain tension, and a clean-down of the tool surfaces. Weekly checks add electrical cabinet inspection and a torque check on the main frame fasteners. SBKJ ships every machine with an English operator manual, a maintenance schedule and a recommended two-year spare parts kit. Operator training is included in the 7-day commissioning visit, and a refresher session can be booked at any time within the warranty period.
